HCDD 340

Grid II

Recap from last class

  • Grid terminologies

Grid

  • Two dimensional layout
  • You can place item to specific location
  • Items can be aligned within their area

Grid terminologies

  • Lines
  • Tracks
  • Cells
  • Gaps

Grid Lines

  • Horizontal and vertical lines
  • Line number starts from one
    • follows writing mode
    • script direction

For English, column number is 1 on the left

Source

Tracks

  • Space between two grid lines
  • Row tracks
    • between two row lines
  • Column tracks
    • between two column lines

Source

Cell

  • Smallest intersection area between rows and columns
  • Similar to a table or spreadsheet cell

Source

Area

  • Spanned over multiple cells

Source

Gaps

  • Gutter or alley
    • between cells
  • Can’t place an item in a gap

Source

Grid

.container {
    display: grid;
    grid-template-columns: 5em 100px 30%;
    grid-template-rows: 200px auto;
}

Creates a new grid

Grid columns

.container {
    display: grid;
    grid-template-columns: 5em 100px 30%;
    grid-template-rows: 200px auto;
}

3 column tracks with different sizes

Grid rows

.container {
    display: grid;
    grid-template-columns: 5em 100px 30%;
    grid-template-rows: 200px auto;
}

2 row tracks with different sizes

How many columns here?

grid-template-columns: 200px repeat(2, 1fr 2fr) 100px;
  • 6 columns
    • 200px, 1fr, 2fr, 1fr, 2fr, 100px
  • You can mix repeat with other sizes

minmax function

  • Sets a minimum and maximum size for a track
  • Adapts to different screen sizes

minmax for responsive design

minmax(auto, 1fr);

Take at least minimum of content width but grow if there is space

Create as many columns as possible

  • A common pattern
  • Can’t pre-specify the number of columns
    • available space is different across devices
  • Use auto-fit

Create as many columns as possible

Using auto-fit

.container {
    display: grid;
    grid-template-columns: repeat(auto-fit, minmax(230px, 1fr));
}

repeat function

/* equivalent rules */
grid-template-columns: 1fr 1fr 1fr;

grid-template-columns: repeat(3, 1fr);

repeat function

  • Two arguments
    • Number of times to repeat
    • Entity to repeat

fr unit

  • One fraction of the available space
  • Allows flexible sizing

Today

  • Placing items in grids

Auto placement (default)

  • Items are placed one per cell
  • In the same order as in the code
  • Default placement is along the rows
    • For column placement:
      • grid-auto-flow: column;

Todo

Line based placement

  • Placing items on specific lines
  • For English, column number is 1 on the left

Source

Line based placement

Start and end lines for an item

  • grid-column-start
  • grid-column-end
  • grid-row-start
  • grid-row-end

Line based placement

Start and end lines for an item

.item {
/* start at column line 1 */
grid-column-start: 1;

 /* end at column line 4 */
grid-column-end: 4;

 /*start at row line 2 */
grid-row-start: 2;

/* end at row line 4 */
grid-row-end: 4;
}

Shorthand for line placement

  • grid-column
    • grid-column-start / grid-column-end
  • grid-row
    • grid-row-start / grid-row-end

Shorthand for line placement

.item {
    grid-column-start: 1;
    grid-column-end: 4;

    grid-row-start: 2;
    grid-row-end: 4;
}

=

.item {
    grid-column: 1 / 4;
    grid-row: 2 / 4;
}

Todo

Source

Negative number for line placement

  • You can use negative number
  • -1: the end column or row
    • count inwards using negative values

Todo

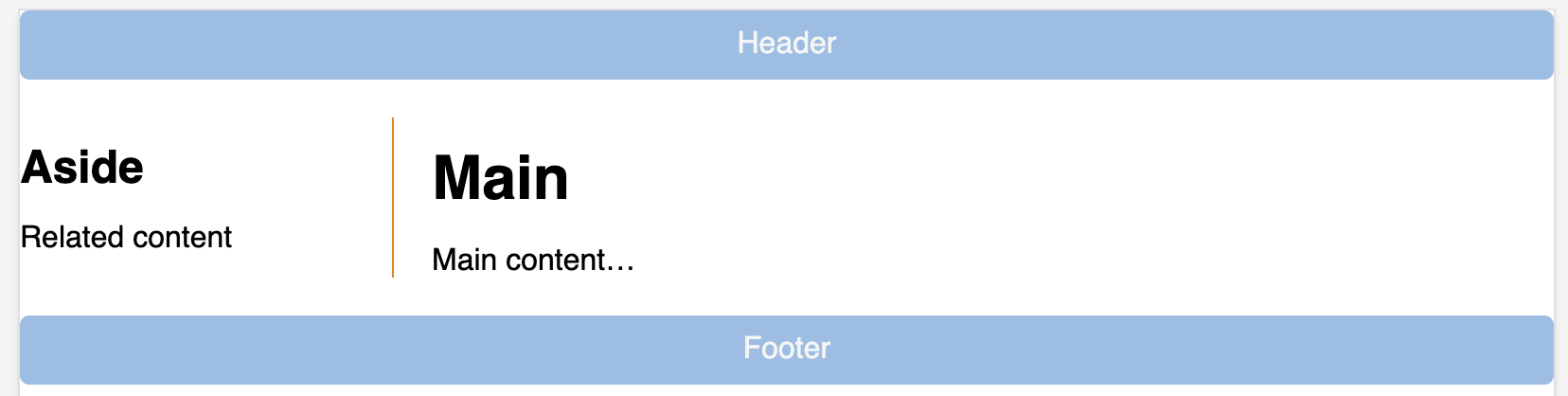

  • Open Activity 06
  • Update grid-column and grid-row
    • using negative values

Source

grid-template-areas

  • Name areas of the grid
  • Place items onto those named areas
  • Very useful

grid-template-areas

.container {
    display: grid;
    grid-template-columns:
        repeat(4,1fr);
    grid-template-areas:
        "h h h h"
        "s c c c"
        "s f f f";
}
header {
    grid-area: h;
}

.sidebar {
    grid-area: s;
}

.content {
    grid-area: c;
}

footer {
    grid-area: f;
}

grid-template-areas

  • Every cell must be filled
  • repeating name will span cells
  • . (period) is for empty cell

Todo

Source

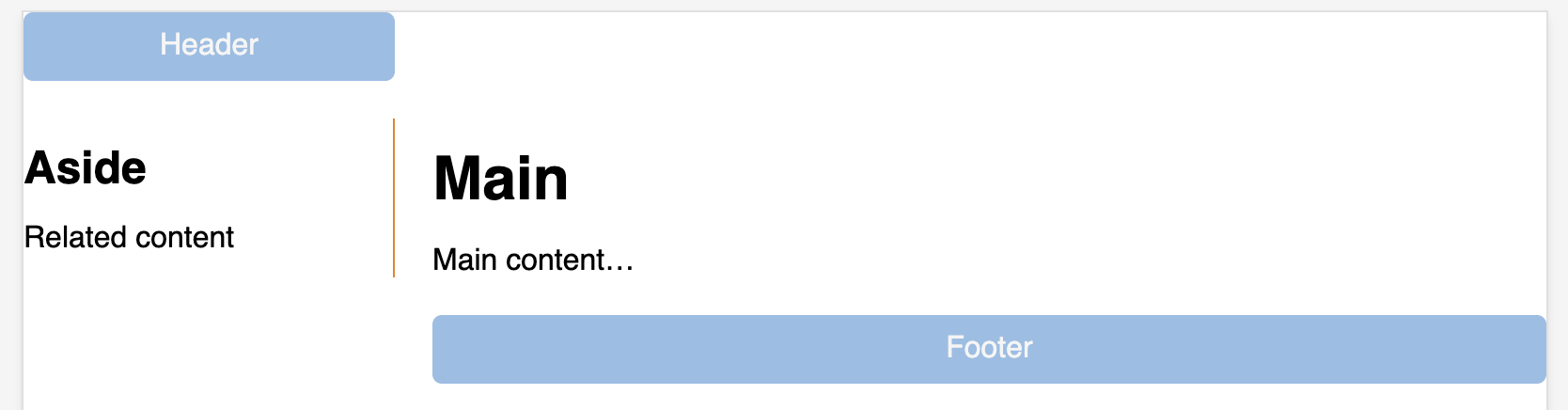

Todo

. (period) is for empty cell

Aligning items in Grid

Similar to flexbox!

  • Column axis alignment
    • align-self and align-items
  • Row axis alignment
    • justify-items and justify-self

Source

Nesting grids

  • Making a child item a subgrid
    • display: grid
    • Define other grid properties (columns, rows, …)
  • See an example here

Todo

  • Go to Grid Garden
  • Complete levels
    • Discuss with your group members

Assignment 2

  • Will be published tomorrow
  • Due by September 30th
